SELECT D.* FROM cmis:document AS D WHERE D.cmis:name LIKE '%Flower%' OR D.cmis:contentStreamFileName LIKE '%Flower%'
was giving me a fit lately, not working at all in RightsPro‘s CMIS plugin which uses OpenCMIS and yielding inconsistent results in CMIS Workbench where re-posting the same query ten times would give the expected result maybe half the time.
Thanks to Florian Müller and this post, it seems as though Alfresco doesn’t always behave as expected when the locale is set in the CMIS session.
Removing the locale session parameters got things working in RightsPro, but I didn’t immediately see an easy way to change the locale in a Workbench session (the log shows that it’s using a default of en_US), and I still don’t know what’s up with the inconsistent results there, perhaps a coincidental caching issue.
This was all using OpenCMIS 0.3 against Alfresco Enterprise 3.3.1 over SSL.
Alfresco has undergone quite a few changes under the hood in version 3.3, including refactoring of the ThumbnailService to make use of the RenditionService, which I had to explore in a recent deep dive to get video working for the thumbnails extension. This is obviously a subject dear to your heart as well or you would have moved on by now.
Let’s take a look at how things worked back in the old days, before 3.2 (fuzzy 2009 dream sequence begins…)
You most likely kicked things off with a thumbnail generating URL which would hit a ScriptNode.createThumbnail method which looked up the thumbnailDefinition and called the ThumbnailService with the TransformationOptions contained in the definition.
The ThumbnailService then told the ContentService to perform the transformation which looked up the ContentTransformer from the TransformerRegistry and executed transformer.transform which usually delegated to a RuntimeExec object to perform the actual command line transformation.
If we were to visualize the key elements of that stack for a synchronous video thumbnail creation it would look something like:
These Alfresco people don’t mess around. If it’s determined that refactoring should happen, it happens, real damn quick, even if it’s huge. To that end subsystems were rolled out in 3.2 and the RenditionService was introduced in 3.3.
Subsystems. Certain content transformers, like ImageMagick, have been refactored as a subsystem, which is cool. Read the wiki page to get the full story but in short it’s a much more flexible architecture.
The ffmpeg video transformer contained in the latest release of the thumbnails extension follows this precedence and has been refactored as a subsystem, so there.
RenditionService. I wouldn’t say I hate it, but this package should be wary of eating crackers in bed, or maybe I’m just not familiar enough with it yet.
The new rendition service utilizes RenditionDefinitions which require that any TransformationOptions be ‘serialized’ into a parameter map, which are then reassembled into TransformationOptions objects before being passed to the ContentTransformer. I suppose this is done to make it easier to do things like hand renditions off to another server in a cluster, but it’s a bit of a pain in the ass for developers.
So, back to our synchronous video thumbnail creation scenario (deep breath), the ThumbnailService now creates a RenditionDefinition which it passes to the RenditionService which wraps things up in a PerformRenditionActionExecuter that gets passed to the ActionService. The PerformRenditionActionExecuter calls the ActionService again which loads the RenderingEngine from the spring ApplicationContext. A RenderingEngine is itself an ActionExecuter so the ActionService calls execute which calls render which proceeds to rebuild the TransformationOptions object needed by the ContentService to get the proper ContentTransformer so transformer.transform can use a RuntimeExec object to perform the actual command line transformation.
The key elements of our pseudo stack/method trace would look like:
A while ago we submitted an issue to Alfresco suggesting TransformationOptions which contain distinct target AND source options so that one could for example specify that all ‘doclib’ thumbnails be of max-width X and max-height Y (the type of target options currently available) and furthermore, if it’s a document take page 1 (or maybe you need a different page in your deployment) or if it’s a video take 1 frame starting 0.5 seconds in, or if it’s a layered image file take the second layer, etc. (a list of source options).
Alas, this concept of SourceTargetTransformationOptions hasn’t yet been embraced by the Alfresco team but is used by the video transformer in the thumbnails extension which made refactoring for renditions even more difficult, but you’re not here to listen to me bitch and moan, so I’ll just say that it’s done and seems to be working fine.
So, there you have it, renditions and subsystems as they relate to video thumbnails. Hit me up with any questions or things I’ve missed.
then change the expression class of the image element on the layout to java.awt.Image as well. You’ll also have to add javax.imageio.ImageIO to the imports of the report.
This technique can be useful when you need to grab the image data dynamically (not from actual files on the filesystem), you can’t get each image from a URL (perhaps due to security constraints), and don’t want to use a custom Java datasource.
Deciding where to handle authorization in a setup where Alfresco’s authentication is handled by CAS which itself authenticates against LDAP may not be as easy as it sounds. This post goes through some of the possibilities and one solution.
LDAP Authentication with an Expiration Date Attribute
On Alfresco version 2.x we extended the LDAPAuthenticationComponentImpl class to be able to evaluate an LDAP filter string, configurable via spring, which was used primarily for the purpose of determining whether the user’s access to Alfresco had expired, with the expiration date being stored as an LDAP attribute. So our ldap-authenication.properties file would contain something like:
Once the expiration date was reached the user was denied access to the application.
Moving to Single Sign On
We’re now migrating to Alfresco 3.x and also have the need to move to a single sign on solution. Jasig’s Central Authentication Service (CAS) was chosen as the implementation, requiring some changes to our expiration strategy.
In our previous configuration, authentication (is this user who they say they are) and authorization (is this user allowed to do x) were intertwined in our single custom LDAPAuthenticationComponentImpl class. Any other applications authenticating against the same LDAP server could implement their own authentication/authorization methods.
CAS however is only concerned with authentication, not authorization, and applications utilizing it need to be able to decouple those functions, which is a better architecture in most cases anyway.
Our task then is to determine where in the authentication/authorization strategy we should handle this expiration authorization.
Choosing Where to Handle Authorization
Customize the CAS Server?
Modifying the CAS LDAP authentication handler wouldn’t be an appropriate place for our expiration authorization since all CAS services share the same authentication handler and other applications that have no notion of the Alfresco service or its expiration could be denied authentication.
We could try implementing a CAS authorizing serviceRegistryDao which would in theory allow the CAS server to determine if the user were authorized to use the service requested beyond just the Enabled and SSO Participant settings. An authorization component could be defined that would make the authorization decision based on the service being requested and the user requesting it. Each service could choose its authorization component as an option during setup in the CAS Service Management application.
CAS really wants the client/application to handle authorization though, so customizing the server doesn’t look like a recommended approach.
We could setup Alfresco’s authentication chain to talk to CAS, but in version 3.2 Alfresco has changed its authentication configuration to use the notion of Authentication Subsystems (which seems nicely implemented) and most documentation indicates that integration with something like CAS is best achieved by using mod_cas or mod_auth_cas in Apache web server, and since we’re already using Apache in front of Tomcat with mod_proxy_ajp that approach seems like a good fit.
Wait, Can a Hacker Just Spoof HTTP Headers?
It looks like AJP between Tomcat and the web server is responsible for parsing these protocol specific (non-HTTP) headers to find the remote user value and set that in Tomcat’s HttpServletRequest, so a hacker can’t just modify the headers in their browser and have that be translated into an authenticated user.
However, it is extremely important that your Tomcat connector be behind a firewall and only accept connections from known web servers. Otherwise a hacker could set up their own web server with a bogus authentication mechanism which would add an authenticated user header in the AJP message, which in turn would translate to that user being signed in to a protected application.
mod_cas or mod_auth_cas?
With proper security in place we should be OK to use an Apache CAS module for authentication, but which one?
hasn’t been maintained in quite a while
has missing links all over the site
the documentation incorrectly states that “CAS stands for Common Authorization Service”
Option 1: Extend Alfresco’s Request Authn to Grab CAS Attribute
The CAS server can return attributes to the client and if mod_auth_cas passes those attributes through mod_proxy_ajp to Tomcat and Alfresco then we may be able to modify the component which checks that header for the authenticated username, HTTPRequestAuthenticationFilter, to also look for the expiration date attribute and authorize or deny the user.
After modifying Tomcat’s example snoop application to show all headers and attributes:
it doesn’t look like the additional attributes defined to be available to the CAS service are passed through mod_auth_cas and mod_proxy_ajp to the secured application. We might be able to pass the data through SAML attributes but it seems that would require POST requests.
Option 2: Extend Alfresco’s Request Authn to query LDAP directly
If we can’t get the expiration date attribute from the request headers we still may be able to modify the request authentication filter to make a trip directly to the LDAP server to query for the attribute and confirm or deny authorization, but maybe we can do everything at the web server.
Option 3: Handle Authorization at Apache
The ‘auth’ in mod_auth_cas appears to only include authentication but there may be hope in allowing mod_auth_cas to handle just the authentication part then using mod_authnz_ldap or the third-party mod_authz_ldap module to handle the authorization side.
mod_authnz_ldap’s Require ldap-filter looks promising, but we would need to insert a dynamic date (today’s) for comparison to the user’s expiration date. LDAP syntax doesn’t seem to have any keyword for the current date to be handled on the server side and it doesn’t look like mod_authnz_ldap has any special tags for injecting it in the filter string so the source code would have to be modified.
Unfortunately, upon further investigation mod_authz_ldap does not support secure SSL/TLS communication with the LDAP server and hasn’t been maintained in a quite a while, so that won’t work.
Dare I try modifying the mod_authnz_ldap source to allow for a dynamic replace of a date tag? Sure, why not?
The last time I wrote C code it was probably on a machine running Mac OS 7.6, but after several hours and as many espressos I’ve taken the relevant code from mod_authz_ldap’s source, tweaked it a bit, and found the appropriate place to inject it in mod_authnz_ldap’s authn_ldap_build_filter.
You can compile and install a single module on the server with:
apxs -i -a -c mod_authnz_ldap.c
then add the appropriate config to your location directive. So we have CAS performing authentication and a modified mod_authnz_ldap performing authorization on our Tomcat examples app:

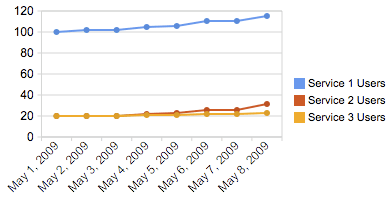

As a fairly simple and common use case I choose a target of a line chart that showed the number of users of a few services over time and defined some basic requirements:
The data must be fetched from a separate URL, not defined on the presentation page (this URL will be a web service in production)
Three series must be displayed at once
The data points should have tooltips
‘Out-of-the-box’ components should be used when possible
A non-flash solution is preferred
Some of the points I found interesting from each framework follow. Note that the charts here are only screenshots as I didn’t find any immediately obvious way to get the real charts working on wordpress.com.
At this time it doesn’t seem that jQuery or jQuery UI has any built-in charting abilities but there are a ton of community plugins available.
Flot looked the most promising (Sparklines also looks very good for tiny charts).
Flot seems to prefer its data in JSON format organized by series and we want to simulate a web service so we’ll create a file data/users-series-format.json containing something like:
The YUI Charts Control (labeled as experimental at the time of this writing) creates nice looking charts, but they are flash-based.
There is plenty of documentation on YUI’s charts so I won’t go into too much detail but the concepts are similar to above.
YUI’s DataSource component can handle several data formats, for consistency’s sake I went with JSON so my file data/users-raw-format.json (named so since it most closely resembles the raw data used to build it) contains:
I did have trouble getting this data to load properly via URL when the HTML file containing the DataSource code was loaded in the browser via file:// rather than http:// even after adding the file location to the Flash global security settings.
Include the scripts (YUI’s dependency configurator comes in handy here), add a place holder div for the chart, get the data, and build the chart.
Don’t forget to set YAHOO.widget.Chart.SWFURL to a location containing the swf.
We were originally using Apple OS X Server as our LDAP store for our Alfresco instance.
Apple’s OS X Server uses OpenLDAP but adds custom schema for many things including users and groups. As a result we ended up using the description LDAP attribute for Alfresco’s ldap.synchronisation.groupIdAttributeName.
We’ve since migrated to a generic OpenLDAP server (with a bit of our own custom schema) so we’re now able to use the more common and unchanging cn attribute for the group id.
When we change ldap.synchronisation.groupIdAttributeName in ldap-synchronisation.properties Alfresco imports the new groups properly but group permissions on spaces will retain the old group name so we need to change those to use the new cn attribute.
What we did was to create a temporary table in the Alfresco database, import the mapping of the cn attribute to the description attribute, then run a query to replace the old authorities with the new.
We used phpLDAPAdmin to export our groups subtree as CSV with only the cn and description attributes, then imported that file into the t_ldap_groups table just created.
Replace the Old Authorities
I’m by no means an SQL expert but the query below does the following:
Strips GROUP_ from the current stored group long name
Searches the temporary LDAP table for that group long name and corresponding group short name
Updates the alf_authority.authority field with GROUP_group short name
SET authority = CONCAT('GROUP_',
(SELECT cn FROM t_ldap_groups WHERE description = SUBSTRING(alf_authority.authority, 7) LIMIT 1))
WHERE authority LIKE 'GROUP_%' AND
(SELECT cn FROM t_ldap_groups WHERE description = SUBSTRING(alf_authority.authority, 7) LIMIT 1) IS NOT NULL;
In Alfresco 2.x the authority is stored directly in the alf_access_control_entry table as well so the update statement would be a bit more complicated.
Drop the Temp Table
DROP TABLE t_ldap_groups;
So far we haven’t had any adverse effects on our development server doing things this way but if anyone has a better method or potential issues with this one let us know.
It seems the time has come that I start making my thoughts known to whoever might be listening out there via the sometimes informative, sometimes controversial, often ridiculous medium of blogging.
After investigating several services and open source blogging web apps I’ve chosen to give WordPress.com a try as you can no doubt see if you’re reading this post.
I was leaning towards a hosted service from the start as I have grown very weary of maintaining servers and apps in my ‘old age’. Google’s Blogger (formerly Blogspot) and WordPress.com emerged as the two best candidates for a ready-to-use, free, hosted blog platform that suited my needs.
I came across some nice comparisons with many user comments including this Pulsed post and Squidoo lens.
In the end I went with WordPress for a couple of reasons:
I don’t plan to ever have ads.
It seems to be widely used.
Most WordPress blogs I saw seemed to be cleaner than Blogger’s (whether that’s purely a function of the themes or the type of creators each attracts I’m not sure)
It shouldn’t be too tough to switch if I can’t stand it, but so far I do like the service/app.
I’d imagine the content here will consist primarily of brain dumps about enterprise java, open source integration, general technology thoughts, and the occasional rant. I’ll apologize in advanced for the terrible vocabulary and grammar.
